> Electric Actuated Valves > JM Series-Weather Proof
※Click to Download PDF
Click to View
JM Series-Electric Actrator (JM1 JM1A...JM6H)
JM series-IP67-Weather Proof-
Made In Taiwan,Aluminium Body-Actuator
Manual Override-Lever or Hand-wheel
Hand-Wheel:All Aluminium-Materials
Volt. :AC110V, AC220V 1PH, DC24V,
AC220V 3PH, AC380V 3PH
Options:
Additional Limit Switches(2-Units)
Space Heater, O/S LED Light,
Modulating Controller 0~100%
Input Signal:4~20mA, 2~10VDC, 1~5VDC
Output Signel:4~20mA, 2~10VDC, 1~5VDC
Fail-Safe: Normally OPEN Or CLOSE
1 Sec. OPEN/CLOSE
Output Torque:350Kg-cm~17000kg-cm(1667Nm)

Click to View
Electrically Actuated - Butterfly Valves (BFX)
Click to View

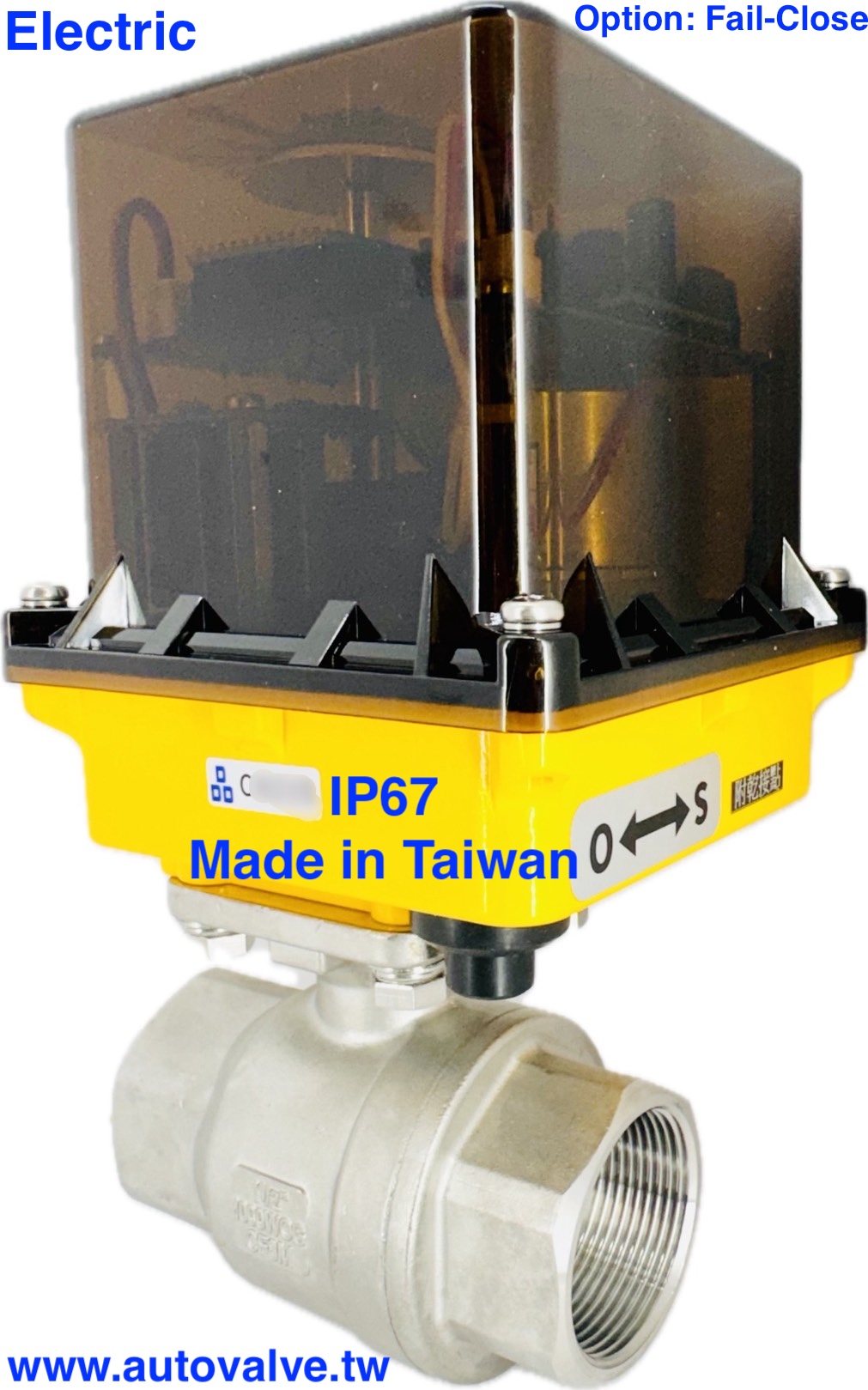

Electric Actuated Ball Valves (Fail-Closed or Open) (JM2-ECR)
Electric Actuated Ball Valves (Fail-Closed or Open)
Line ID : 0286483176
Click to View

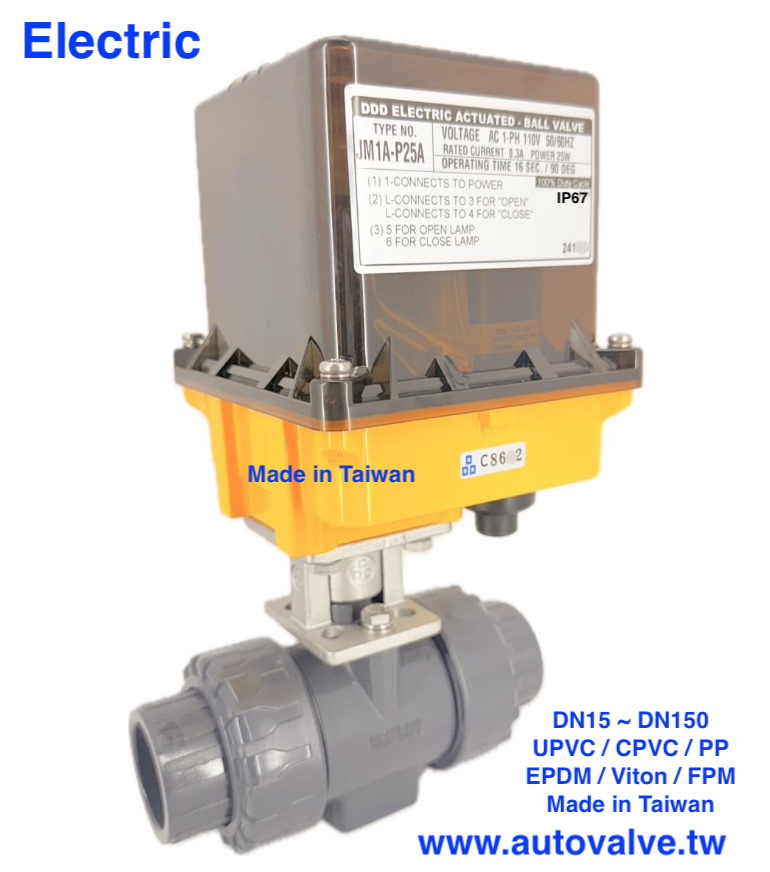

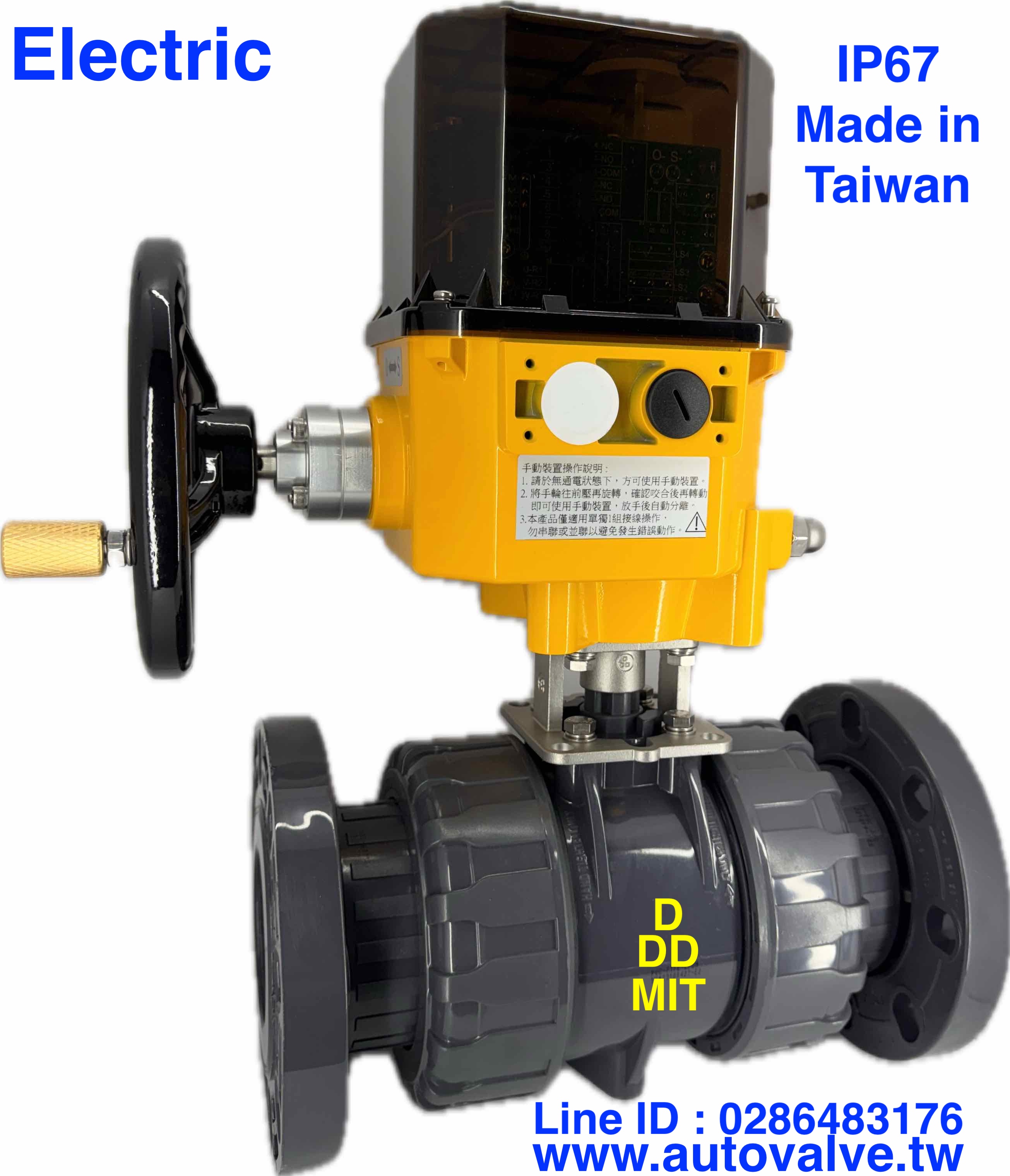

Electric Actuated Ball Valves - PVC Valve Body (JM1A JM2A JM3 JM3H JM4H)
Electric Actuated Ball Valves - PVC Valve Body
Line ID : 0286483176
Click to View
Electric Actuated Ball Valve (JM1A JM2A JM3)
Electric Actuated Ball Valve

Total 5 counts, Page: of 1
